Since our inception in 2012, our commitment to business ethics has been a huge part in expanding as a business. We are manufacturers and Exporters of Ring Joint Gasket and Stud Bolts.
Melting Sealing India Pvt Ltd provides the oil and gas industry with a full line of replacement parts
for Gate Valves (FC, FL & FLS) including Gates, Seats, Body Bushings, Stems, Bonnet Seal Rings, Bearing & Races, Body Grease Fittings, Packing Injections Fittings and more.
Pressure rating: 5000-15000psi
Sizes: 1 13/16” – 7 1/16 “
Material Class: DD-HH Trim
PSL Level: 1-3
Performance Level: 1
| Size | Working pressure(psi) | ||
| 1 13/16" | 10000 | 15000 | |
| 2 1/16" | 5000 | 10000 | 15000 |
| 2 9/16" | 5000 | 10000 | 15000 |
| 3 1/8" | 5000 | ||
| 3 1/16" | 10000 | 15000 | |
| 4 1/16" | 5000 | 10000 | 15000 |
| 5 1/8" | 10000 | 15000 | |
| 7 1/16" | 10000 | 15000 | |

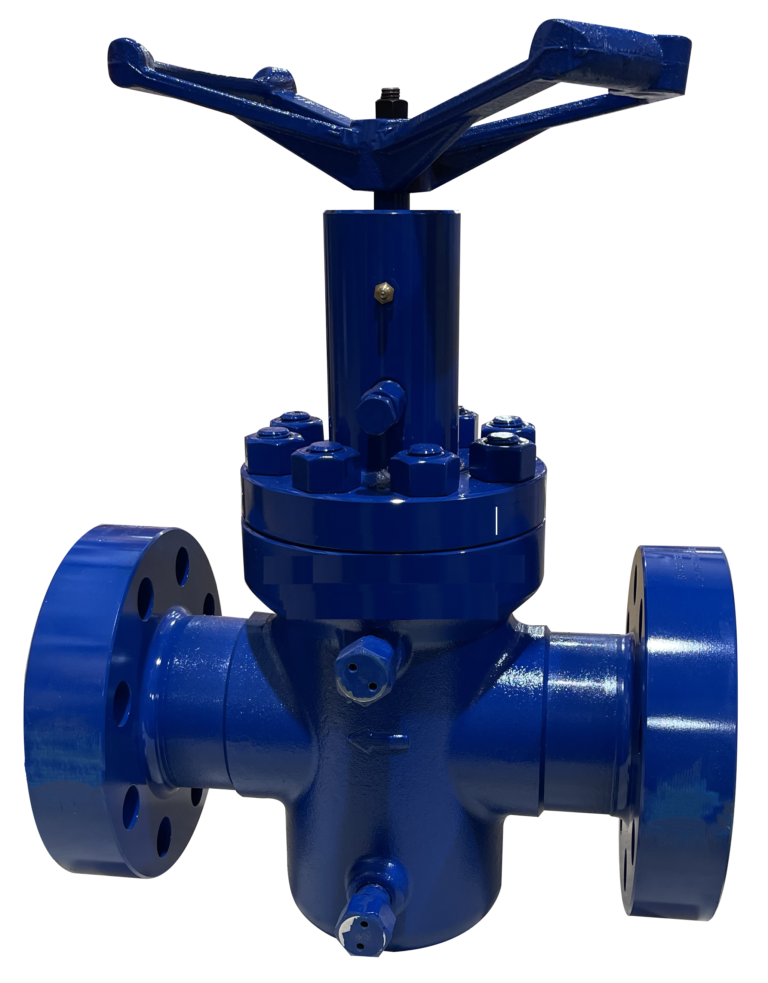

Expanding gate valves are made according to API 6A and consist of one gate body and a related gate segment. It is designed for use in thermal recovery wellheads, production trees, and manifolds.
Pressure rating: 5000-15000psi
Sizes: 1 13/16” – 7 1/16 “
Material Class: DD-HH Trim
PSL Level: 1-3
Performance Level: 1
| Size (in) | Pressure (psi) | Bore (mm) | A (mm) | D (mm) | B (mm) | C (mm) | Weight (kg) |
| 2 1/16" | 5000 | 52.4 | 371 | 330 | 130 | 470 | 75 |
| 2 9/16" | 5000 | 65.1 | 422 | 330 | 150 | 550 | 105 |
| 3 1/8" | 5000 | 79.4 | 473 | 400 | 190 | 555 | 150 |
| 4 1/16" | 5000 | 103.2 | 549 | 480 | 240 | 635 | 280 |
| 7 1/16" | 5000 | 179.4 | 813 | 760 | 355 | 715 | 600 |
R&S Oilfield, inc. offers Haliburton style, low torque, bottom entry plug valves. Sizes currently in stock include 1” x 2”, 2”x2”, 3”x3”, 4”x4” and 5”x5” in figure 1502. Repair kits are also available for fast shipping.
