Range: Insulation Kit Gasket

We design, manufacture & supply Flange Insulating Kit Gasket in three types:

• TYPE-E for full face flanges
• TYPE-F for raised face flanges
• TYPE-D gaskets specifically designed to fit into the grooves of RTJ Flanges

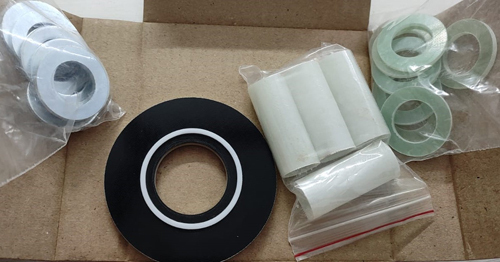

Flange Insulation Kit Gasket will comprise of:

For Type "E" and type "F"

• One central gasket of suitable thickness in flat section
• One full length insulating sleeve per bolt / Integral Washer Sleeve
• Two insulating washers per bolt
• Two electro plated metallic washers

Insulation Gaskets for Type "F" Raised Face Flanges

Available for use in ANSI B16.5, API, BS & DIN Standard. In this type, the central gasket is designed to be located inside the flange bolt circle and sits fully on the raised face portion of the flange. This type of gaskets will be supplied in all the materials as shown in "Materials Used " Table below.

Insulation Gaskets Type "E" for Full Face Flanges

Available for use in ANSI B16.5, API, BS & DIN Standard.

In this type, the central gasket has its outside diameter as equal to that of flange outside diameter and precision cut bolt holes. This design helps easy alignment of the gaskets during installation. Type "E" gaskets are available in Neoprene faced reinforced phenolic material or other materials as shown in "Materials Used " Table below.

Insulation Gaskets Type "D" for Ring Gaskets

Available for use in ANSI B16.5, API, BS & DIN Standard In this type the gaskets available in fabric reinforced Phenolic. Available in basic "oval & octagonal" type. This type has the contact faces with oval shape. It provides a high reliability seal. These gaskets comply with ASME B - 16.20.
